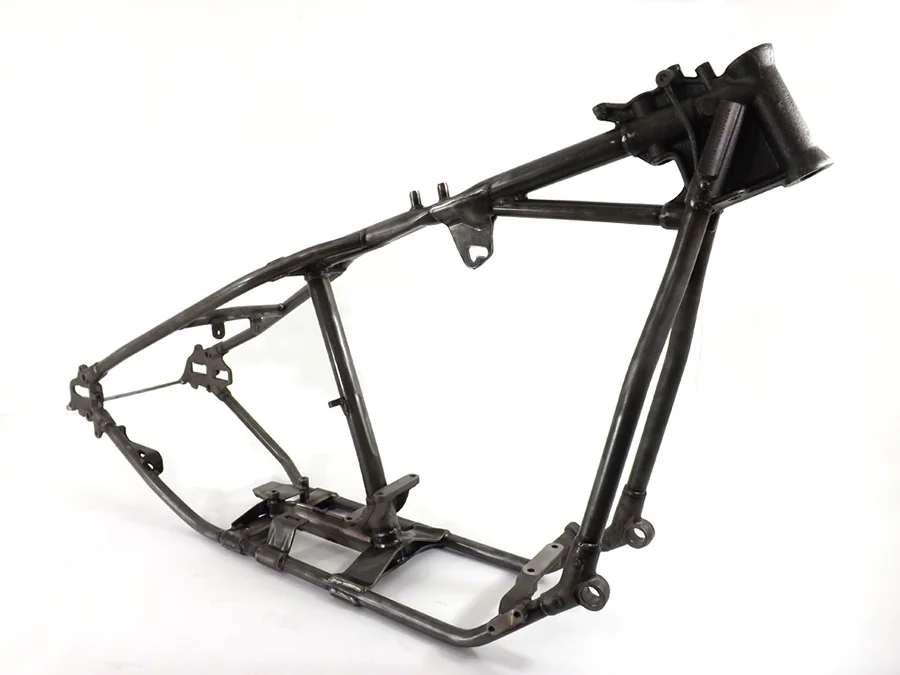

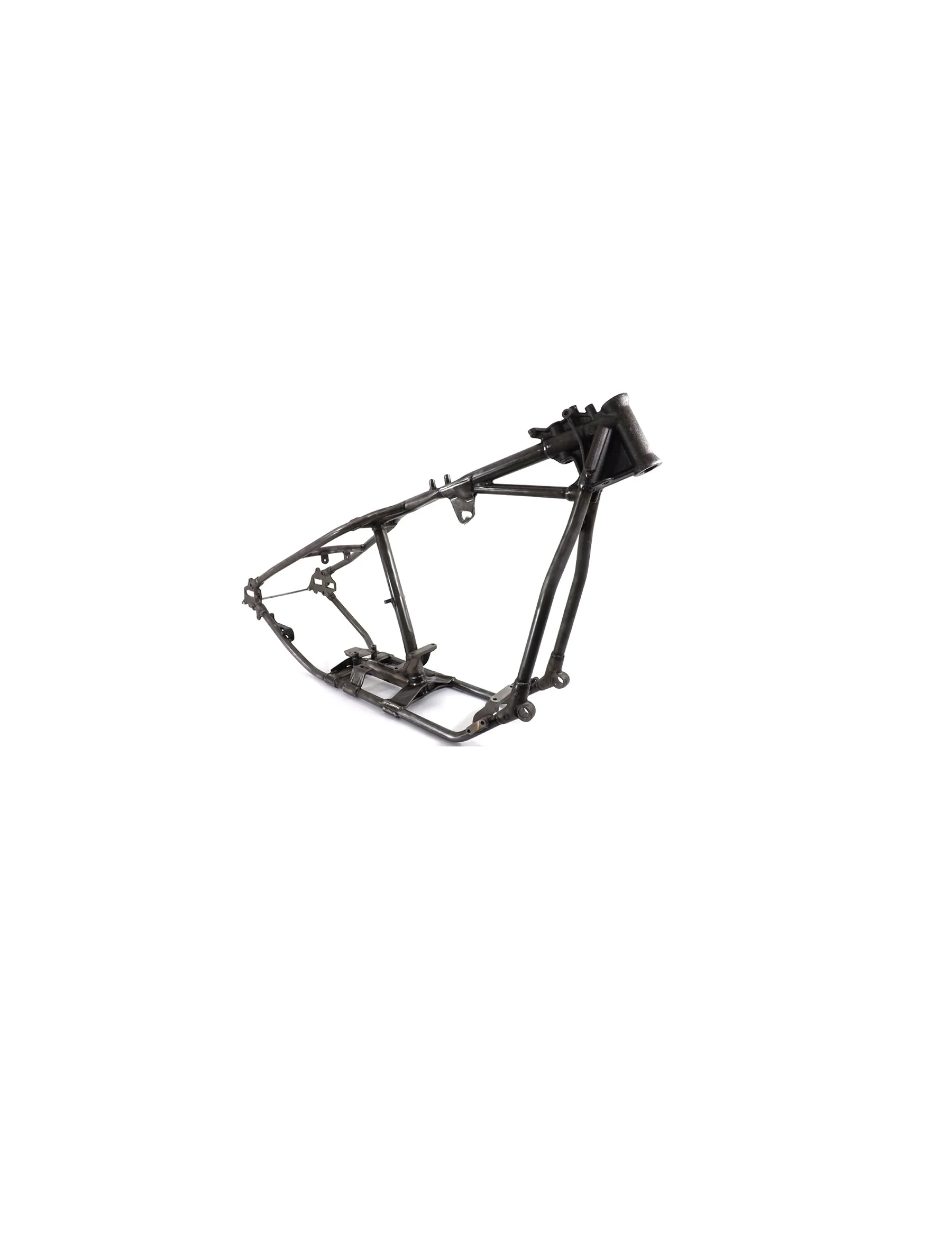

Replica Wishbone Rigid Frame

Replica Wishbone Rigid Frame


VT No: 51-1948
Exact Replica of the original style frame only updated to accepts flat side gas/oil tanks. Frame has many options for the look you want! Frame will hold a Evolution, Panhead or Shovelhead engine with 4-speed or 5-speed transmission.
Accepts all Big Twin engines, 200 series rear tires with a chain drive. Will also fit 5-speed transmission. Knuckle or Flathead engines can be installed with use of additional front engine mount spacer. Frame has 1987-1999 tupe caliper bracket weld in place. Features a 30° rake and +2" raised neck, and 10.75" between axle plates. Features forgings which make the frame much stronger than tubes. Will not accept a seat post. Accepts rigid rear axle, 3/4" axle plate collars, transmission mount plate, inner primary cover flange spacers and extended sprocket shaft and nut set. Neck cups are replaceable.

*NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplies a Bill of Sale only referencing the part number.

*NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
Custom application
