Replica Wishbone Ridged Frame (With Cross Over)

Replica Wishbone Ridged Frame (With Cross Over)

1,425.60

VT No: 51-0097

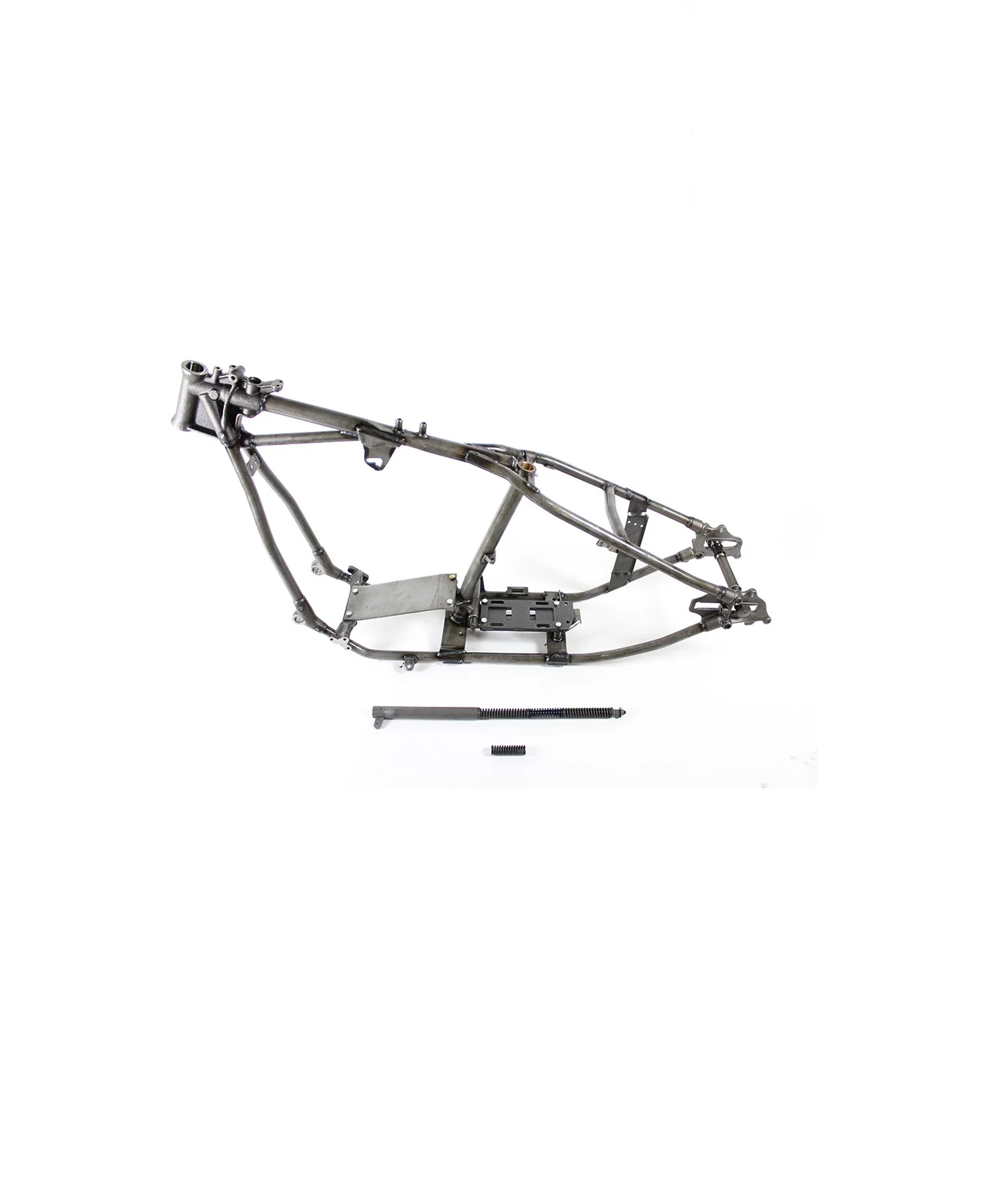

Replica retro wishbone frame original style is updated to accept flat side tanks. Original forged parts include: neck, side car mounts and rear axle area. For all Big Twin engines with 4, 5 or 6 speed transmission.

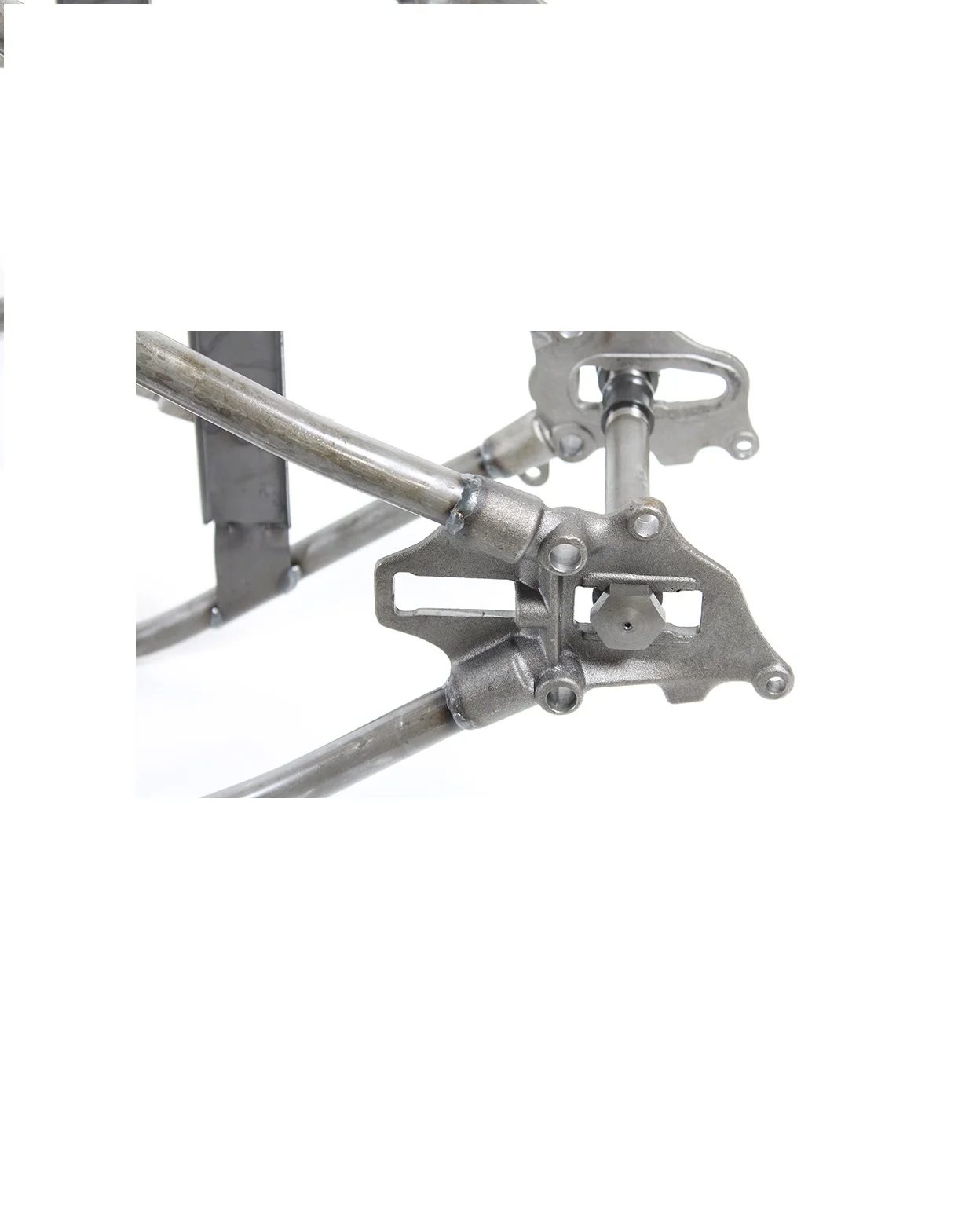

Includes seat post, transmission mount plate for 4-speed tran, and rear axle. For all Big Twin engines with 4 or 5 speed transmission. Accepts Panhead, Shovelhead, Evolution and TC-88 engines but will require a tin inner primary. Accepts 1986-1999 FXST gas tanks and chain final drive. Frame has a +2" raised neck and 10.75 between the axle plates. Seat post is included and can be adapted with a front T bar mount. Supplied with the rigid frame is the brake cross shaft for mechanical brakes and stock rear axle plate for use of the star hub wheel and mechanical brakes.

*NOTE: Seat post may require futher reaming for proper fit. Therefore frame will not be accepted for return (RGA). *NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplies a Bill of Sale only referencing the part number.

*Note: UPS may consider this part packaged "oversize" for shipment, as compared to the actual weight.
Fits:
Custom Application
